Truck traffic? Vermin in the waste? Bulging waste bags? As cities and their waste grow, many turn to Envac’s innovative, automated waste collection system for an answer.

Reshaping the city

With Envac, you can eliminate curbside waste pickup so that residents and visitors can enjoy fresher air, quieter neighbourhoods, and less traffic congestion. Whether you’re considering an AWCS (Automated Waste Collection System) in a new build, historical city centre, or retrofit, the Envac AWCS offers cities and residential areas a wide range of benefits over conventional truck collection.

Co2Emissions icon

90%

Less CO2 emissions

Recycle icon

Recycling

6 different waste fractions are managed

Hourglass icon

24/7 availability

Even in challenging weather

Green Space, Lujiazui Central, Shanghai, China

Higher quality of life for residents

When you install the Envac system, you can reduce an area’s need for heavy waste transport by up to 90%. The results? Fewer trucks and traffic jams, a safer and more mobile environment, less noise, and lower carbon emissions. And because the system is hermetically sealed, with optional touchless access, and sensor-driven, it prevents litter overflow, doesn’t attract rats or other pests, and won’t release potential odours.

Removing bulky waste collection vehicles and bins from residential areas minimises the risk of accidents involving pedestrians and cyclists, making the urban environment safer and more secure. With its sleek and modern design, Envac’s waste inlets also help create a more appealing area that frees up space for developers to offer more amenities, services, or green spaces.

3D illustration of a city from above

Slashed transport emissions

Cities and regions that use the Envac system have seen their transport emissions from waste collection plummet. The pneumatic waste collection system, with its automated, centralised, and quick collection, promotes health, well-being, and broader sustainability goals.

Waste disposals point Air inlet valve Waste inlet Outdoor disposal point Vertical storage chute Pipes Litterbins Waste collection station Containers Fans Air outlet Cyclone Diverter valve Available 24/7/365 Other areas

Waste disposals point

The indoor waste disposals points can be placed on each floor or in the entrance hall.

Air inlet valve

The Air inlet valve let transport air into the system at signal from the control system.

Waste inlet

The waste inlets are connected to an underground pipe network that transports the bags from the inlets to the waste collection station.

Outdoor disposal point

The inlets, one for each type of waste/reclables, are placed close to the building for comfort. The easier it is to dispose of sorted waste, the more will be sorted.

The sealed system removes foul smell and can be placed close to residential buildings, making littering a thing of the past. Our system reduces waste collection traffic and the noise, emissions and pollution associated with it by up to 90%, making city life greener, cleaner and more sustainable.

Vertical storage chute

This is where the bags are stored until the chute is reaching full level. Sensors in the chute send a signal to the waste collection station and an emptying circle is started.

Powerful fans, in the station, create an airflow in the pipes. Transport air is let into the system.

Underground automatic waste pipes installed in culvert

Pipes

The bags are transported to the collection station at 70 kph.

Litterbins

Self-emptying litterbins can be connected to the system.

Waste collection station

The waste collection station is located as far away as possible from the apartments, ideally close to a main road.

With Envac there is no longer need for trucks to drive up to each building to collect household waste, it is collected at the terminal building only.

The area becomes less noisy, the street environment safer and the air cleaner.

Containers

When a container is full, it is detached from the compactor and loaded onto a truck for transport to the recycling center, where it is emptied and returned.

Fans

Powerful fans generate the necessary airflow in the pipes to transport the waste to the terminal.

Air outlet

The transport air is filtered before release, making it cleaner than when it first entered the system.

Cyclone

In the cyclone, the transport air is separated from the bags, allowing the bags to slide toward the compactor under the combined effect of the cyclone’s and gravity.

When the waste reaches the compactor from the cyclone, a vertical tray pushes it into the container to make the most of its capacity.

Diverter valve

Once the waste reaches the terminal, it is directed to its corresponding cyclone through the diversifying valve. So, each type of waste will reach the container for its fraction.

Available 24/7/365

The resilient system is part of the smart city’s infrastructure and available 24/7/365.

Other areas

Startpage of Envac City
Cities
Healthcare
Airports
Wireless network and Connection technology concept with Abstract buildings and city background

Greater operational efficiencies, 24/7 availability

The direct cost alone of municipal solid waste collection is about 143 billion euros globally, according to the UN’s 2024 Global Waste Management Outlook. Automated waste collection drastically reduces manual labour and associated costs. It simplifies the collection process by automating it, making collection and management much more efficient and reliable, with round-the-clock availability not affected by strikes, weather conditions, or pandemic-like events.

Unlike traditional city waste collection, which isn’t based on data and analytics, the Envac system can digitally adapt to an area’s needs. Sensors that track fill levels and provide real-time monitoring ensure that waste is only collected when necessary, preventing overflow and underutilisation of resources. Municipalities can also use data insights to better manage system operational performance and create more targeted recycling initiatives.

Sanitation worker sorting through trash bins.

Lower risk of work injuries and illness

Being a solid waste collector can be dangerous anywhere in the world. For example, the report Waste Statistics in Great Britain shows that the UK waste industry has the second-highest accident ratio per 100,000 workers, with most injuries coming from manual handling.

The Envac system provides workers with a better workplace environment. There is almost nothing to lift and drag, and since there is virtually no physical contact with the waste, they can avoid spreading infections or cutting themselves.

Comparison: Street with Envac System
With Envac
Comparison: Street without Envac System
Without Envac

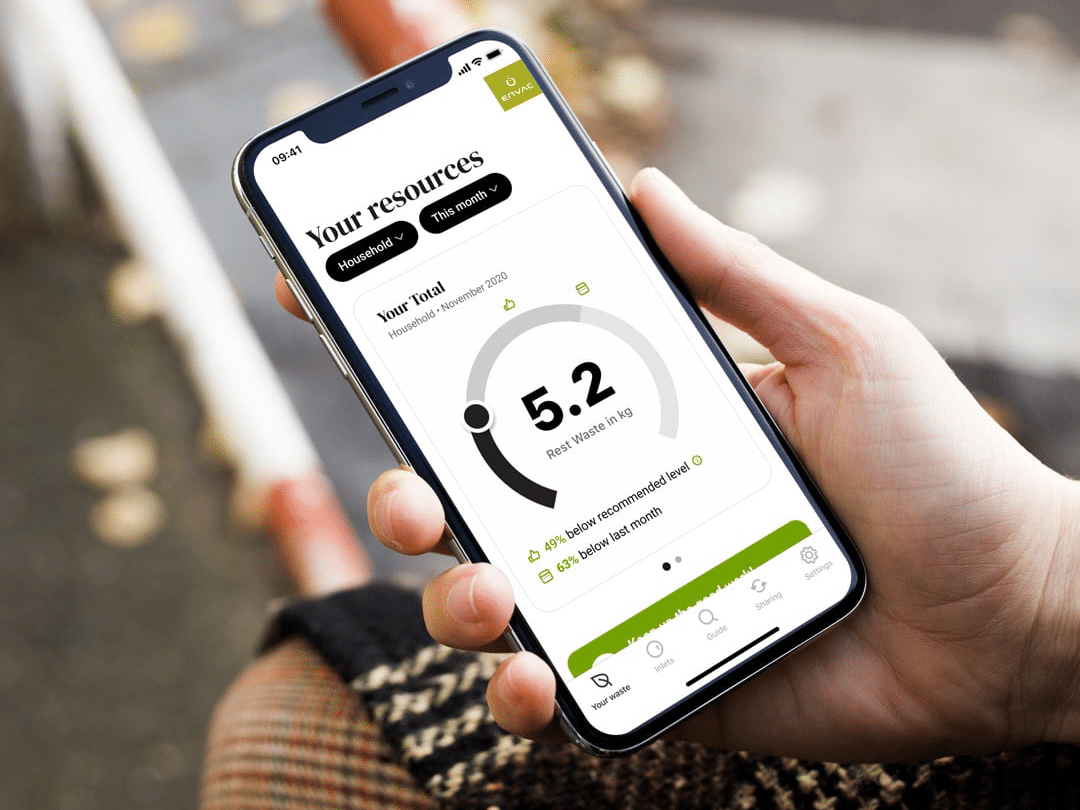

Envac Reflow application user interface

Real-time, data-driven decision-making – smart waste management

Cities worldwide are incorporating technology to monitor, collect, and process waste to minimise resource use, reduce costs, and improve service to residents. It involves using sensors and interconnected devices to gather real-time data and efficiently manage resources. Citizens, too, can use an app to view their waste volumes, get feedback on recycling habits, and get guidance on contributing to the neighbourhood’s environmental goals.

Envac’s ReFlow, a smart waste management application, can help transform waste management digitally and help your city become more efficient, transparent, and sustainable.

Save space up to 70%

The implementation of Envac’s Pneumatic Waste Collection System has the potential to decrease waste collection truck trips by up to 80% and reduce the space required for waste storage in buildings by as much as 70%. Consider the opportunities that arise from such significant space savings.

Calculate your potential space savings below!

How many new homes do you need to build in your district?

1
20 000

With an automated
waste collection system you gain:

Solutions for City and Residential

Envac provides customised waste management solutions for urban residential areas, offering municipalities and developers opportunities to optimise their needs. These tailored solutions create unique, sustainable urban spaces that cater to diverse requirements regardless of the area’s size.

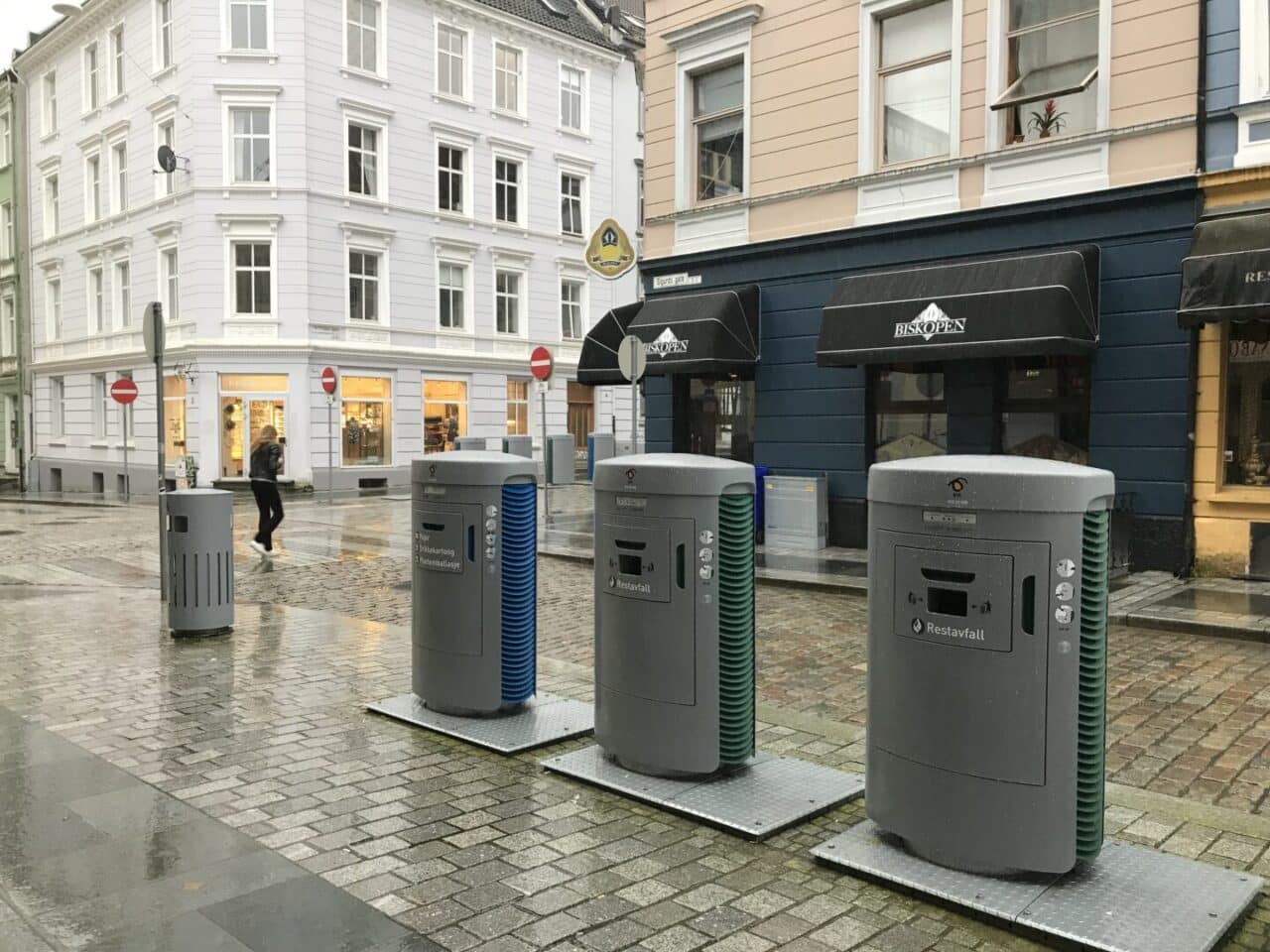

Automatic waste handling inlets in Bergen, Norway

Stationary waste collection

By transporting waste through a sealed underground pipe network, this system eliminates the need for traditional bin collection, reducing noise, emissions, and traffic congestion. It offers a cleaner, more efficient, and sustainable approach to modern waste management.

Automated bag sorting on a conveyor system

Envac Sorting

Envac Sorting encourages sorting, recycling, and sustainable behaviours. Cities of any size can use Envac Sorting, which can be done either by traditional manual collection or by an automated waste collection system. They can save 50% or more on transport and collection costs versus comparable solutions.

Mobile pneumatic waste truck collecting garbage

Mobile vacuum truck

Mobile Pneumatic Waste Collection System is integrated into the vehicle instead of a fixed terminal, making it ideal for areas where a full stationary system isn’t feasible. Since its launch, thousands of residential areas have adopted this innovative approach.


City and Residential projects

Our innovative waste collection system helps shape smart and sustainable cities. By reducing emissions and providing clean, green and sanitary waste inlets for both residents and commercial actors, we want to improve the quality of life in the city.

Cities Seoul, South Korea

Heukseok Xi, Seoul

The Heukseok Xi project exemplifies the seamless fusion of luxury living and sustainable urban development. By integrating cutting-edge waste management technology with premium residential features, the complex elevates the everyday lives of its residents and contributes to South Korea’s long-term sustainability goals.

Read more

Cities Majadahonda, Madrid, Spain

Majadahonda

A pioneer in implementing pneumatic waste collection, Majadahonda City Council operates five collection centres and exemplifies how to improve environmental quality and urban planning in cities. By seamlessly integrating waste management, the system has improved sustainability and made life easier for residents.

Read more

Cities Trondheim, Norway

Trondheim City

Nestled in the stunning natural beauty of Norway, the city of Trondheim seamlessly blends cultural richness and architectural elegance. Trondheim’s commitment to sustainability is exemplified by its innovative waste management solutions.
